WALL ELEVATION

Your wall elevation will connect the dots when it comes to the placement and order of your cabinets on each wall. It will show the full length of cabinets on your wall, including the appliances and their locations or any custom cabinets designated to a certain location.

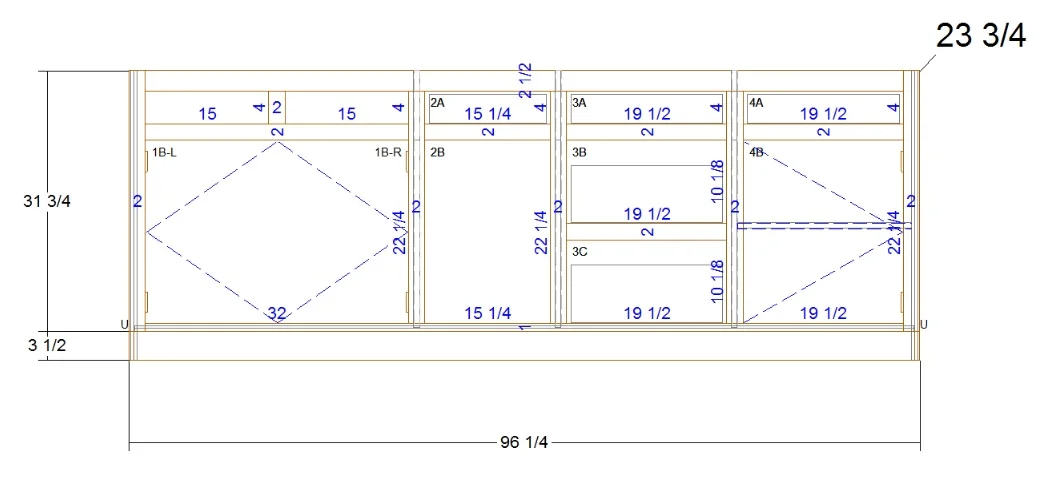

assem long.jpg

Assembly sheet

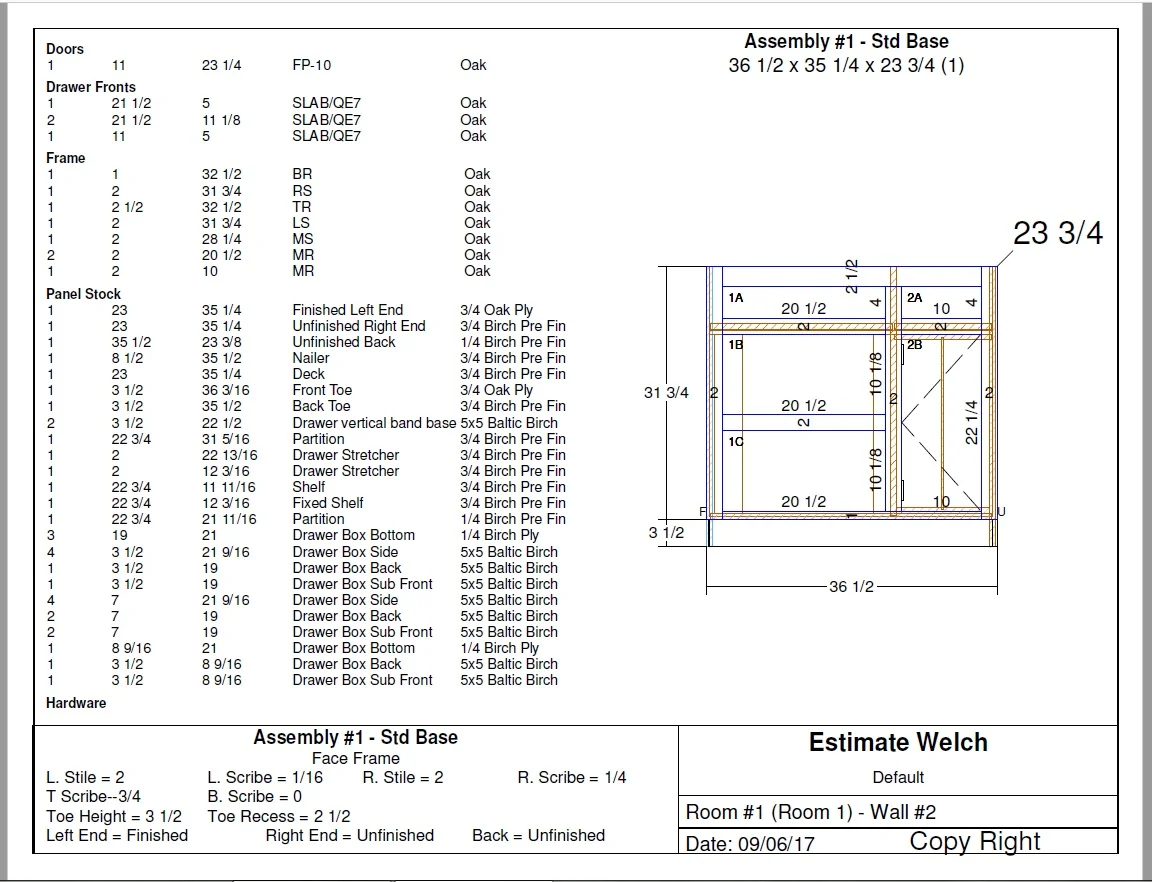

The Assembly sheet package provides a detailed list of measurements for your cabinet parts, frame, drawers, and doors for each specific cabinet. Information from scribe location and size, to the type of wood. Even a complete parts list for the corresponding cabinet.




Floor plan

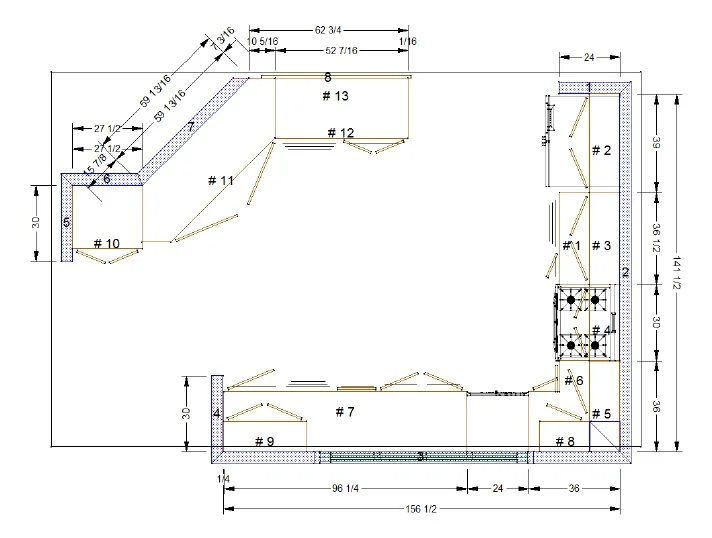

No worries with being confused when it comes to separate rooms and too many cabinets, our floor plan will give you a top view of your layout with cabinet numbers and generalized measurements. These plans in conjunction with your other two sheets will eliminate any questions you may have with installing your cabinets.
